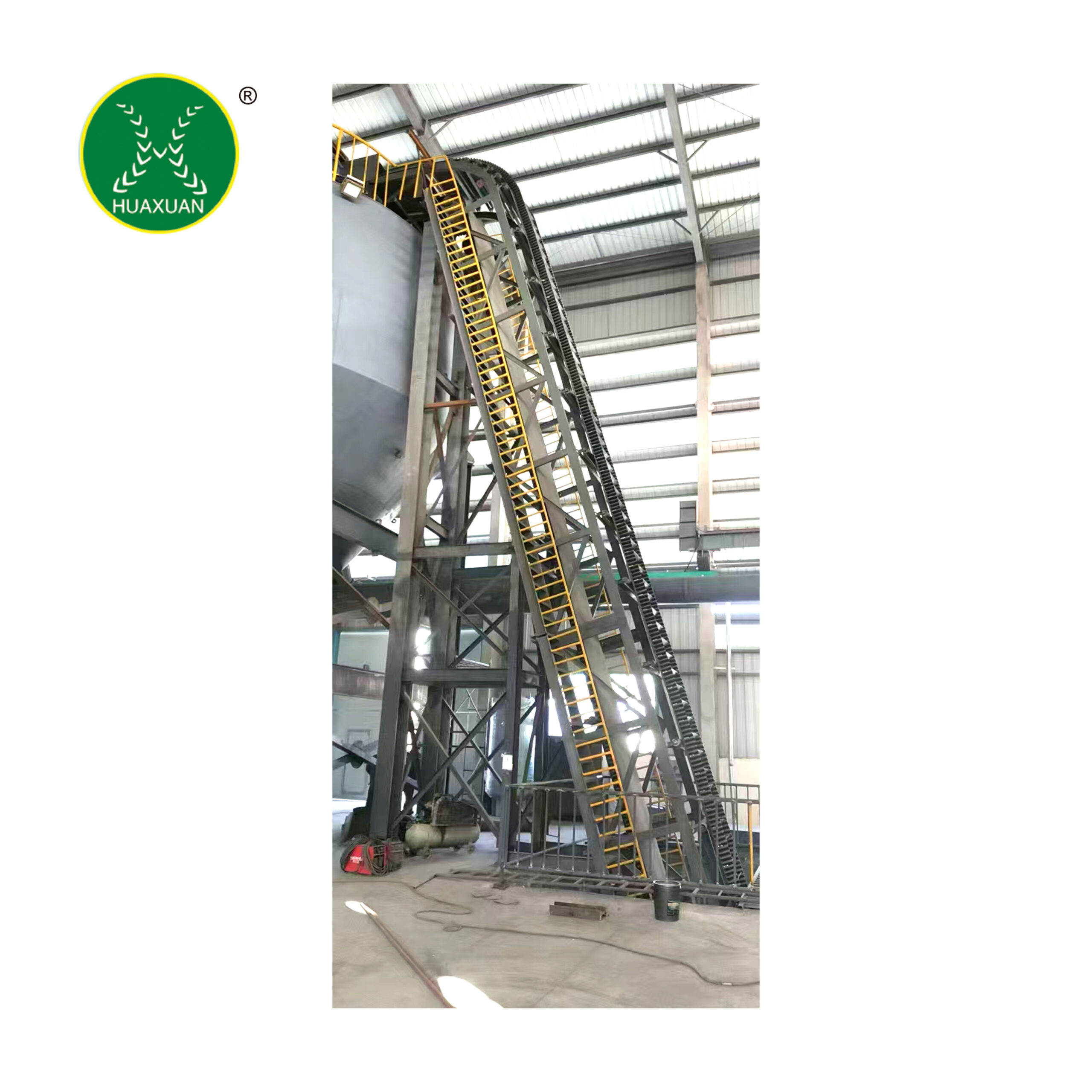

DJ type large angle edge belt conveyor

Product Introduction:

The structure of the DJ type large angle edge blocking belt conveyor is to stick freelyexpandable rubber wave shaped vertical “skirts” on both sides of the flat rubber conveyobelt and to form a box sheped hopper with a certain strength and elasticity of horizontapartitions between the skirts,so that materials can be continuously conveyed in thhopper,lt canbe widelyused in sectors such as coal, grain. building materials.chemical industry. hydropower.and metallurgy to transport various bulk materials witha specific gavity of 0,5-2.5t/m’in the ambient temperature range of -15 to+40’C.For materials with special requirements for transportation, such as high temperature materials with acidic.alkaline.oilysubstances or organic solvents,special edgeconveyor belts should be used with a conveying angle within the range of 0-90
