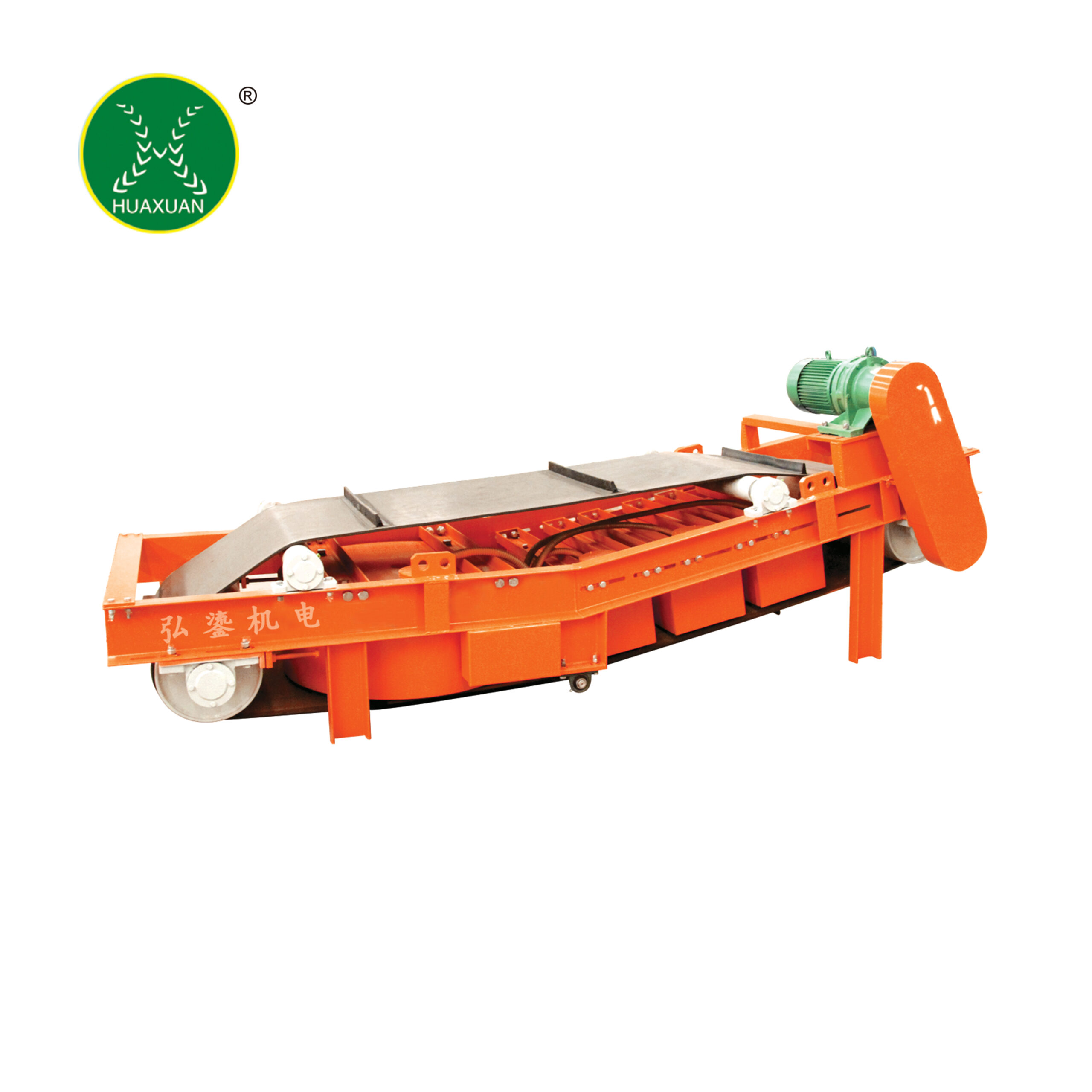

xLK series magnetic ore separator

1.The magnetic circuit is designed by computer simulation. The magnetic field design is unique, with large magnetic permeability andstrong magnetic field.
2. Cooperate with the metal detector to form an automatic detection iron removal system without iron leakage3, Intermittent excitation, low energy consumption, stable and reliable performance,

3.The touch screen is used for independent display, and the graded magnetic field strength and working time can be adjusted acording tothe material characteristics.

4.The multi-stage repeated magnetic separaticn is adopted in the separation area to ensure material characteristics

5.the minimum ore amount during iron removal

6.Autormatic iron unloading, simple maintenance, drum shaped drum drum structure, autmatic deviation corection function, specially madefully sealed bearing seat, suitable for the occasion with large dust on site, can realize long-term trouble free operation.

7. The products are well matched, with camplete functions, marual and centralized control functions, and can meet the ue requirements of varlous occaslons

XLK magnetic ore iron removal systom is installed on the conveyor transporting materials. The metal detector is installed at the front, thaïelt type electromagnetic iron remover is installed on the belt conveyar, and the non-magnetic material distribution platform catches thedrawn iron pieces bohind the iron remover. The rectifier control cabinet connects the metal detector and the belt type iron remover, Whenthe metal detector detects the iron signal, it transmits the signal to the rectifier control cabinet. The conirol cabinet starts the iron unloadingbelt of the belt type iron remover and excites it. The iron parts and soe materials with strong magnetism are simultaneously sucked ypunder the main magnetic pole and move backward through the rotation of the iron unloading bet, Since the magnetic cre and iron pars arevery diferent in shape and magnetism, after three times of sorting, Most of the magnetic ores fall anto the feeding belt again. A smallamount of materials are taken with the iron pieces to the non-magetic material separation platorm for re sepration, After fou times olseparation, good iron removal effect with less ore can be achieved
