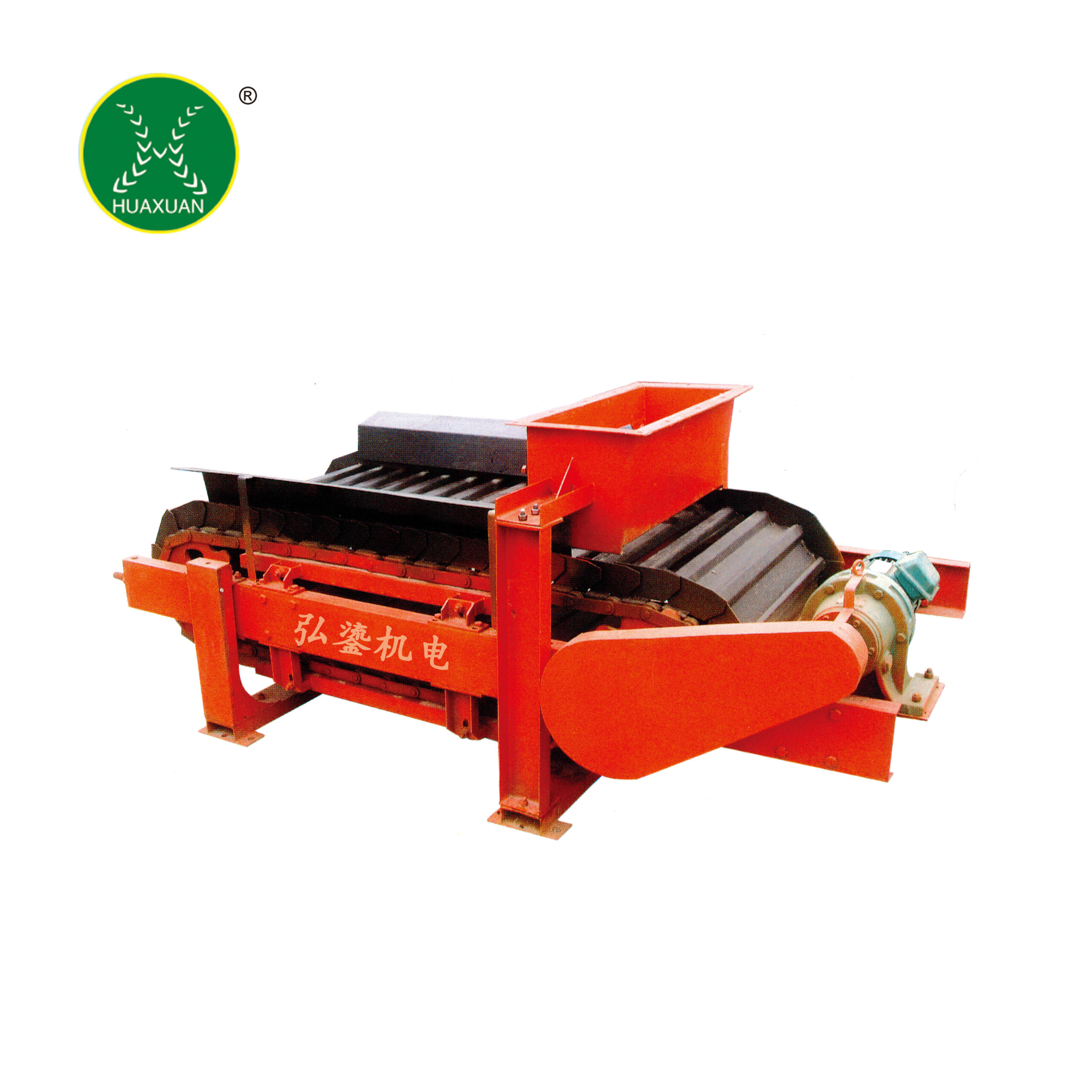

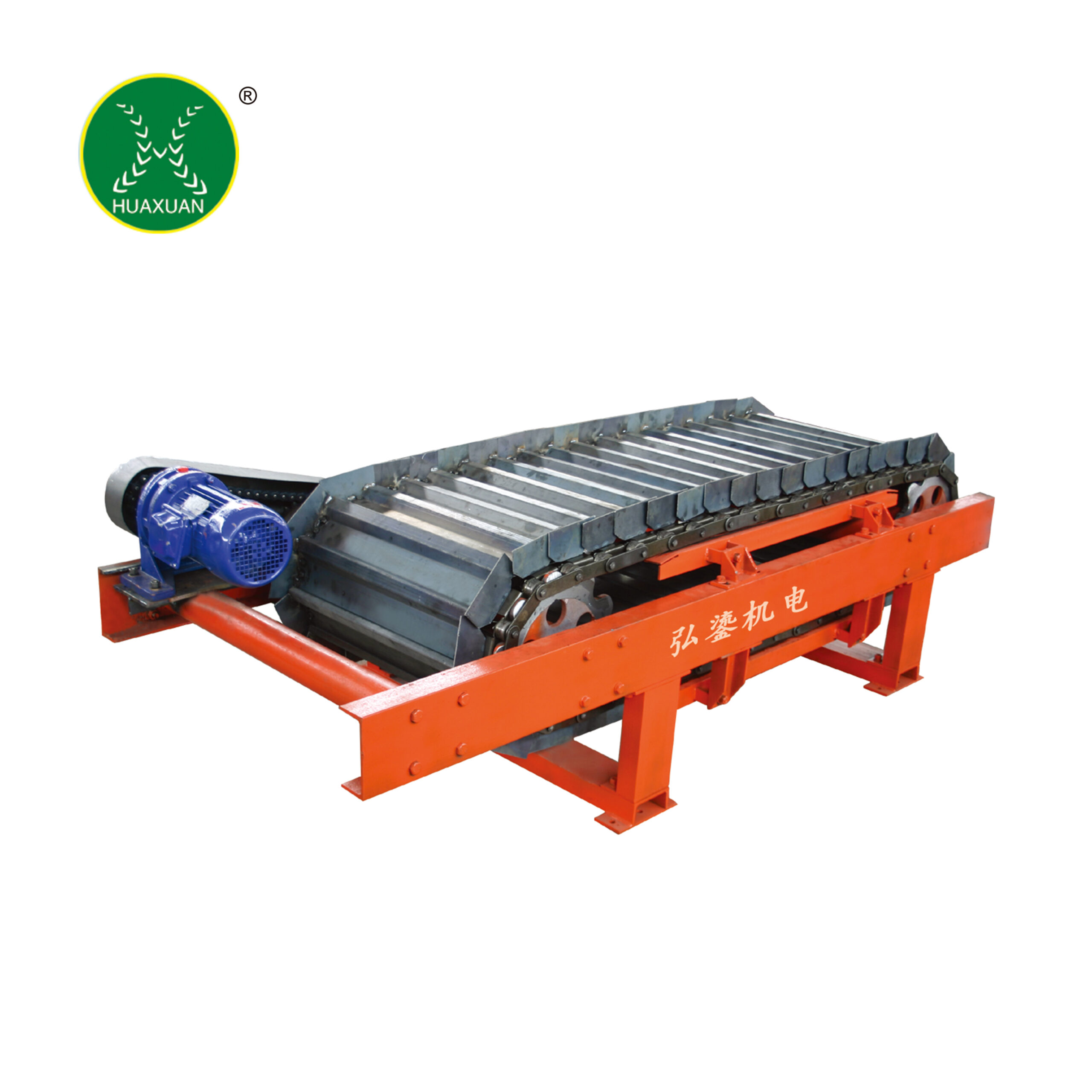

Main features:
The unique L-shaped material transport plate is formed by stamping wear-resistant steel plates with molds, with a compact stuclure¥mooth operation, and minimal noise. Coupled with conical baffes an both sides, it can efectively prevent material leakage.ッhe conveying mechanism adopts large pitch cast chain wheels and single-sided bent roler chains (p.100) that have undergone special hea! atment. are rsistant to high temperature and wear. and there is no deviation chenemenon during the conveving crocesse drag mechanism is equiped with a large BW series cycloidal pinwheel reducer, which has smooth transmission, low nise, low ibration and dust resistance ;e unique weak magnetic gear speed measurement device and high-temperature load sensor ensure accuate and stable weighing and speedmeasurement signals .
Main technical parameters:
1. Static measurement error ≤ 1.5%;
2. Dynamic cumulative error (equivalent) ≤ 2% (in use);
3. Control accuracy: better than 2%;
4. Measurement range: 1-200t/h;
5. Zero value stability: better than 0.007% Cmax;
6. Non linearity of weighing signal: ≤ 0.5%;
7. Speed signal: 40;
8. Pulse/four pole three-phase AC asynchronous motor: 1.5kw, 2.2kw;
9. High temperature resistance range: KW350 ℃ ;
10. Measurement of clinker specifications: granular, block shaped, with a diameter not exceeding 80mm, ensuring uniform and continuous
discharge;
11. The accuracy of sensors, weighing sensors, and speed sensors is better than 0.1%, and the weighing sensors have overload protection
with an overload factor of 150%.
