System technical indicators and functions:
1.Systemmeasurement accuracys0.59
2.Computer power supply:220V+109%S:50HZ，500MA2.
3.Measurement of material ratio at 116 points. aximum cutput per unit; 45 t/h
4.Manually input ingredient content,automatically calculate ingredient ratiowith upper computer feeding contro! and closed-locp control interface for mill load, it can achieve upper computer instructions
5.Equippedor automatic control of mill load. Can be equipped with multi-element analysis automatic signal input interface, etc.
6.The data protection battery inside the machine can automatically provide power down protection for the clock and all data8, Equipped with a communication inteface, it can be connected to the ceniral conirol roam management machine to form a network, ancan also be configured for remote communication
Working principle:
The feeding electric vibration machine and the weighing hopper are soft connected, with gravity separatian. Although the discharging electricvibration machine is also soft connected.its gravity and weighing,hopper are supported by three tension sensors and connected by thematerial column inside the weighing hopper. When working, the feeding electric vibratin machine first feeds the weighing hopper, and wherthe given upper limit value of the material bin is reachedthe feeding is stopped. After a certain period of time.the discharge electricRepeat the action likovibration machine starts unloading, and stops unloading when the unloading reaches the givenlower limit of weight.this The flow measurement of materials is determined by the weight ofthe materials lost in the silo, hence it is called a weight lossscaleThe syster control host adopts a standard industrial control camputer with reliable performance, which can simultaneously control thebatching measurement of two mills and 16scales. And it has formula calculation.automatic ingredient input, multi page display. andgutomalic online reminders, And it can easily form a distributed cantrol system (DcS) with the upper computer
System working conditions:
1、环境温度(ambient temperature):-10℃~+40’℃ 2、电源电压(supply voltage):220V ± 10%3、电源频率(Powerfrequency):50HZ士4 4、相对湿度(relative humidity):≤ 85%

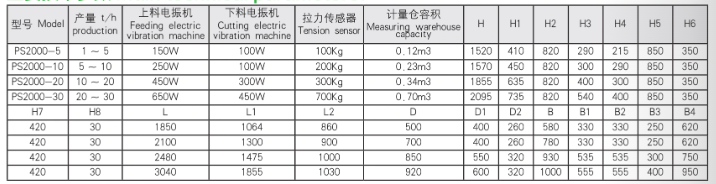

Main technical parameters:
