Main features：
1. The magnetic field of the electromagnetic dry powder/slurry iron remover is high, the magnetic field distribution is uniform, the gradient
is high, and the iron removal effect is obvious.
2. The cooling system adopts forced water cooling for heat dissipation, with good circulation, which can reduce the temperature by about
20 ℃ and prolong the service life of the electromagnetic wire.
3. The brake valve is made of imported materials. The valve body is solid and durable, and there is no residue overflow after closing.
4. The mesh is refined from special materials. After the excitation coil power is cut off, there is no residual magnetism, which is
convenient for iron removal.
Operating Steps：
1. Connect the power supply device and open the feed valve and discharge valve
2. Close the return valve and iron discharge valve, and open the magnetizing device.
3. After a few minutes (can be set as required), close the feed valve and discharge valve, and open the return valve to discharge the
remaining materials in the iron remover through the return valve
4. De energize and close the feed valve, discharge valve and return valve
5. Open the iron discharge valve to discharge the iron containing substances adsorbed in the magnetic medium.

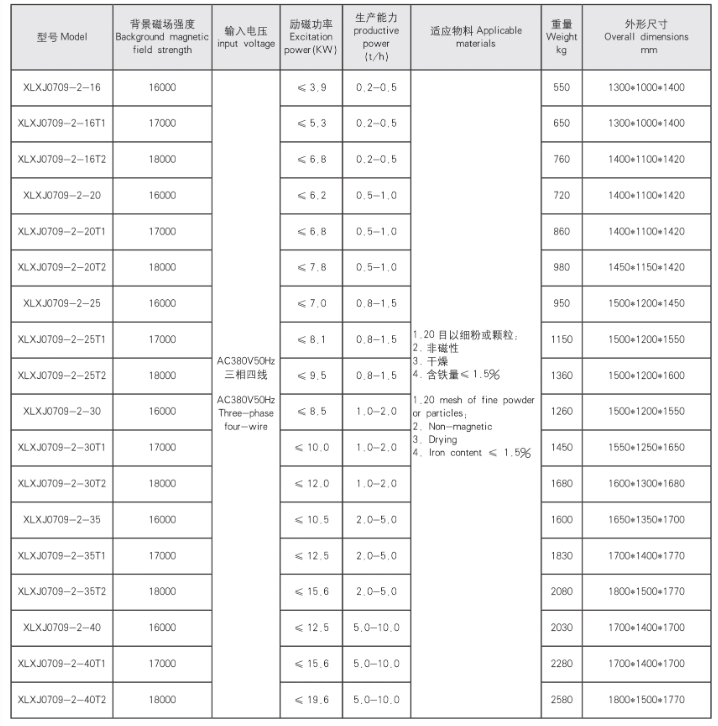

Main technical parameters:
