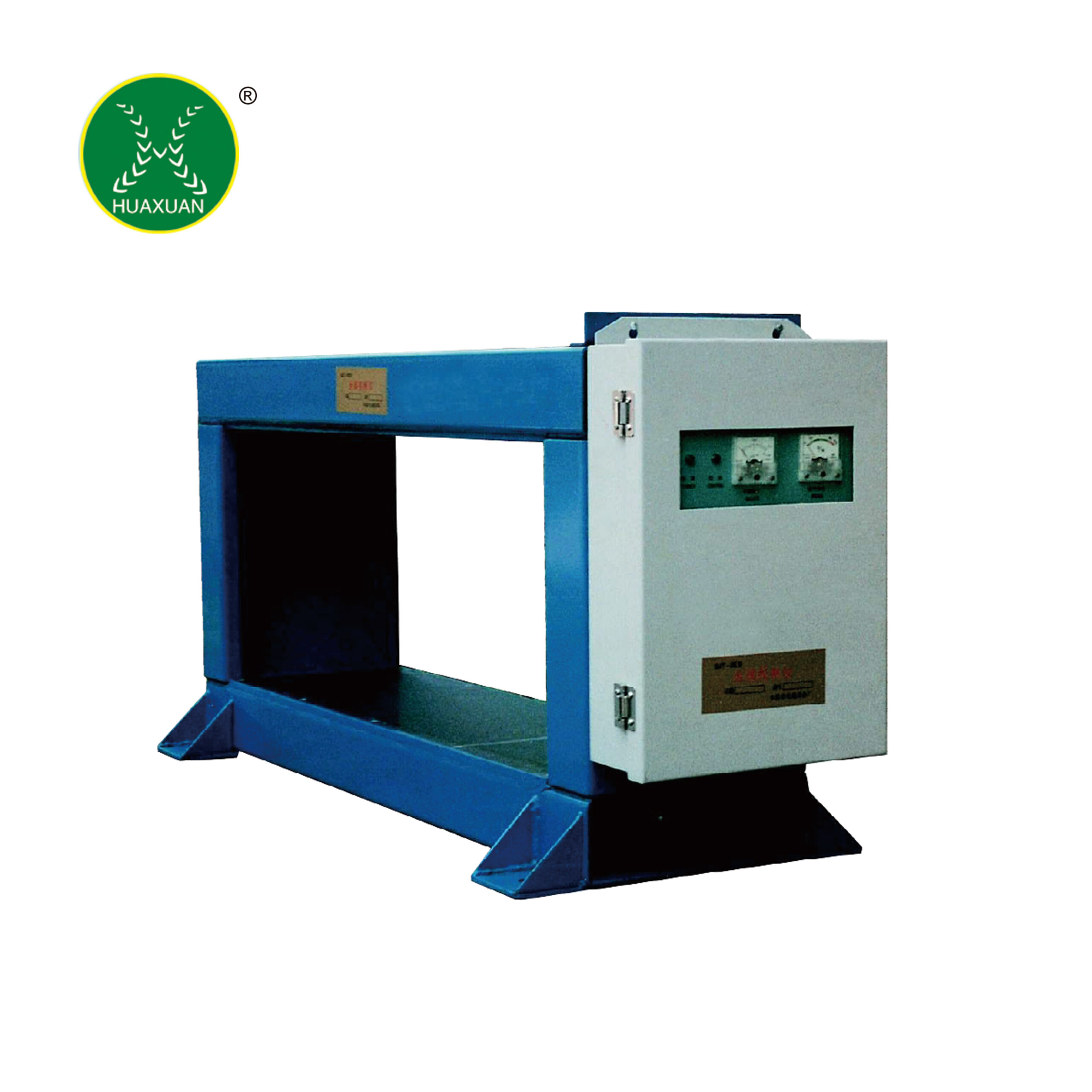

GJT-2F series metal detector

summary:

GJT-2F series metal detector adopts the differential transformer type sensor that
can be assembled. In the circuit design, it adopts the latest metal detection
technology – digital phase shifting and related detection technology. It has
stable and reliable performance, high detection sensitivity, strong material
suppression characteristics, and excellent anti-interference ability. This product
is mainly used in thermal power generation, cement, building materials, paper
making, mining, food, chemical and other industries to detect various metal
substances mixed in raw materials. It uses the induction model generated when
metal enters the electromagnetic field of the sensor to drive the actuator action
through the signal amplification processing circuit, so as to detect harmful
metals.
Product executive standard JB/T1117-201

Main features：

Quantitative sensitivity debugging
High sensitivity design can detect ultra small metals; Audible and visual alarm.
Detection range: iron, aluminum, stainless steel, alloy and other metals.
Control output: one pair of relay contacts is normally open and one pair is normally closed.
Timing function: delay release after the relay is closed, with a delay time of 1-10 seconds.
Automatic detection of metal belt buckle function, no need to change to adhesive tape.
