Equipment Composition:

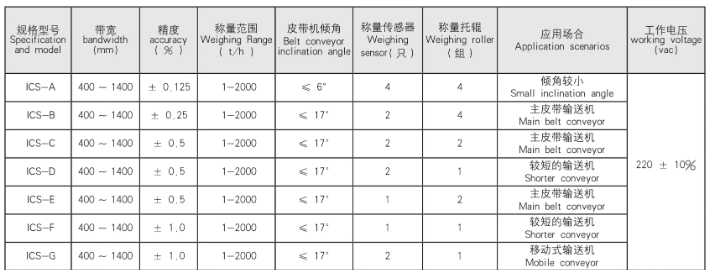

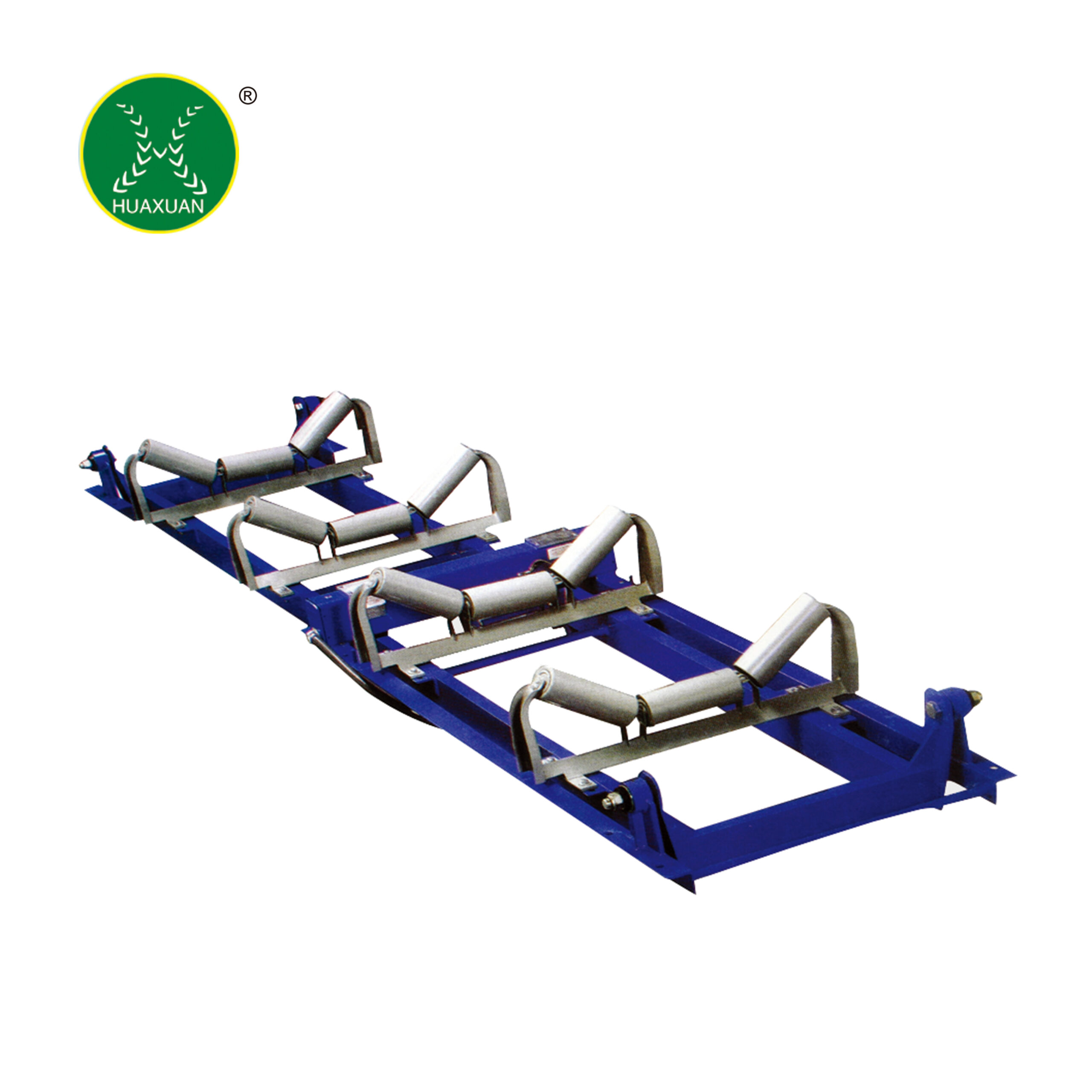

Mechanical scale body, weighing sensor, digilal pulse speed sensor .weighing instrument:There are several structures to choose fromincluding single lever single roller ox double roller, double lever double roler or four roller. and specific sizes can be customized accordingto user regurements
Scope of application:
1. Belt conveyor inclination range: 1-17 °
2. Belt width: 400-2200mm
3. Belt conveyor operating line speed: 0-2.5m/s
4. Center distance between the inlet and outlet of
the belt conveyor: ≥ 3 m
5. Measurement accuracy: ± 0.125% to ± 1%
6. Measurement range: 0.1-2000t/h
